OmniCUBE AK-P168 IP the world's first hybrid practical Battery wireless waterproof pixel beam lights
Pixel | Par | Beam
ALL-IN-OmniCUBE™️
Two light sources Full spectrum
Beam Light：
1 x (7in1)R/G/B/W/A/L/UV
Pixel Light：
72 x (5050)R/G/B/W/W
W:2700K
W:6500K
Shell material:
Aluminum+Tempered glass
Shell color:
Anodizing: White/Black/Gold/other
Protection level: IP65
Lighting Angle
Beam Light： 20°
Pixel Light： 120°
CRI: ＞85%
12 kHz flicker-free performance
ALL in 1 wdr'Light Revolution, Unleashed!

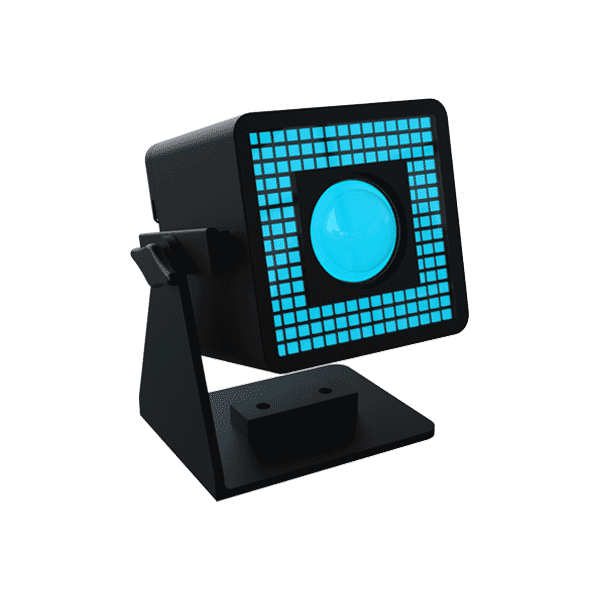

Introducing OmniCUBE™️P168—the world’s first hybrid wireless battery UP light!
With 60W of power and a 7-in-1 full-spectrum LED matrix (RGBW/UV/Amber/Lemon), this innovative lighting tool breaks new ground in creative expression.
For precise lighting control, its 20° ultra-narrow beam offers unparalleled focus, akin to a laser.
For broader applications, the 120° wide wash effortlessly blends light across walls and surfaces.
Perfect for stages, events, weddings, Short video live streaming or breathtaking installations—turn any environment into your personal canvas!
Experience the revolution, Unleashed!
Built-in wireless receiving/transmitting module
Built-in large capacity lithium battery
Support APP control
Support infrared control
TFT user window
Touch Menu
Master/Slave
Auto Mode
Sound Mode
Stroboscopic
Power Meets Portability: Embracing Wireless Freedom
A robust 8800mAh battery powers up to 20 hours of uninterrupted, cordless operation, liberating you from the constraints of cables. Recharge conveniently via the interface (DC), and unleash your creativity anywhere—be it indoors or in the great outdoors, whenever and wherever inspiration beckons.
Smart Control for a Seamless Experience
Effortlessly navigate with the intuitive 1.8" TFT touchscreen and personalize your lighting preferences through Bluetooth, IR, or the extensive 1000m-range DMX (compatible with CRMX2, CRMX Classic, W-DMX G3, G4, G4S, and G5). Program intricate 367-channel macros or seamlessly sync with your favorite apps to redefine your workflow, your way.
Experience Flawless Dimming
Enjoy precise, smooth 0-100% dimming capabilities, perfect for creating subtle and impactful transitions that enhance any scene.
ODM/OEM Customization at Your Fingertips
Ready for branding, tweaking, and personalization, this lighting solution empowers you to make it truly your own. Prepare to revolutionize your lighting experience with the dawn of a new era in wireless battery lighting—it all begins here.
Product Specifications
| Product model： | AK-P168 IP-3 | AK-P168 IP-2 | AK-P168 IP-1 | ||||||||||
| LEDs: | Beam1x25W (RGBW/Y/L/Uv) + Pixel 72x0.5W (RGBWW 5050 ） | |||||||||||
| Lens angle: | 20°/120° | |||||||||||
| Power interface: | DC13.3/3A input | |||||||||||
| Menu display: | 1.8″ TFT | |||||||||||
| Menu button: | Touch/Infrared | |||||||||||
| Battery capacity: | Lithium battery 12.6V8800mAH | |||||||||||
| Battery discharge time: | 3-20H | |||||||||||
| Built-in program: |
DMX/Master-slave/Auto/Sound/Manual/Strobe |
|||||||||||
| DMX Channels： | 2/3/4/7/11/16/51/367CH | |||||||||||
| CRI: | ＞85% | |||||||||||
| Linear dimming： | 0-100% | |||||||||||
| Colour temperature： | W2700-W6500K | |||||||||||
| Wireless DMX Compatible with: | LumenRadio®️ CRMX™ TX+RX |
LumenRadio®️ CRMX™ RX |
China Wireless RX |
|||||||||
| Wireless distance: | 1-1000M | 1-1000M | 1-300M | |||||||||
| Bluetooth: | Y | Y | Y | |||||||||
| Infrared: | Y | Y | Y | |||||||||
| RDM: | Y | Y | Y | |||||||||
| Art-Net: | Y | O | O | |||||||||
| APP control： | Y | Y | O | |||||||||
| Temperature control: | Y | Y | Y | |||||||||
| Built-in energy-saving mode: | Y | Y | Y | |||||||||
| Startup logo: | Y | Y | Y | |||||||||
| Control mode: | DMX Console / MADRIX / IR Control / APP | DMX Console/MADRIX/IR Control | ||||||||||
| Support splicing： | Y | Y | Y | |||||||||
| System Version： | V3.0 | V2.0 | V1.0 | |||||||||
| Input Power: | Dedicated charger/AC90-240V;DC13.3V3A | |||||||||||
| Total Power: | 60w | |||||||||||
| Shell material： | Aluminum+Tempered glass | |||||||||||
| Shell color： | White/black | |||||||||||
| Waterproof grade： | IP65 | |||||||||||

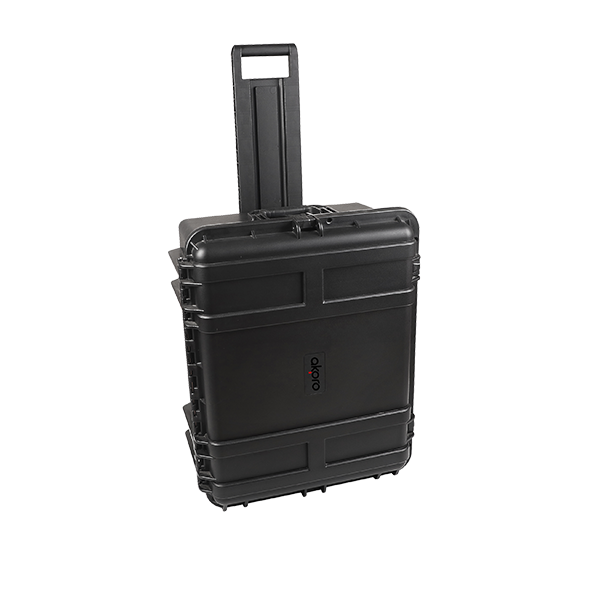

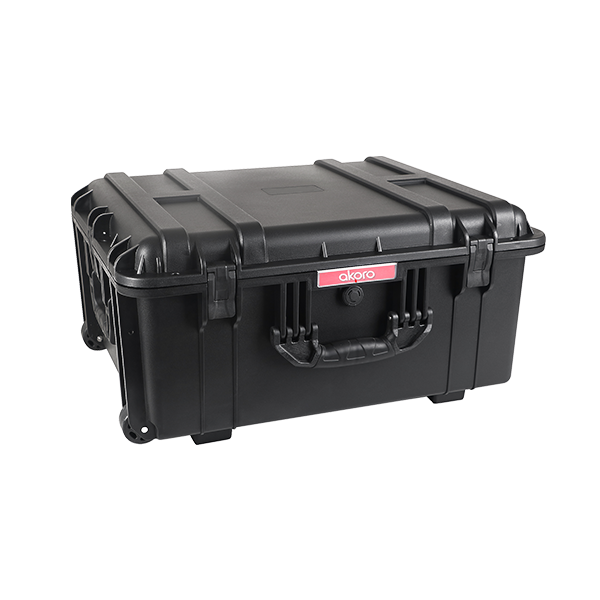

| Charging flight case： | Support (need to be purchased separately) | |||||||||||
| Firmware upgrade： | Via XLR DMX cable | |||||||||||
| Other functions： | Built-in anti-theft lock function | |||||||||||
| Product size: | L168xW168xH151mm | |||||||||||
| Packaging： | Color box packaging | |||||||||||
| Packaging size： | 210x210x200mm | |||||||||||
| Net weight： | 4.8KG | |||||||||||
| Gross Weight： | 5.8KG | |||||||||||
| Accessories: | 1 L-shaped bracket / 1 H-shaped splicing piece / 1 folding bracket / 1 knob / 1 instruction manual / 1 infrared remote control / 1 charger/1 Allen wrench | |||||||||||
| Certificate： | CE / ROHS | |||||||||||
| Intellectual property： | Design patent, utility model patent, invention patent (pending simultaneously in China, the United States, and the European Union) | |||||||||||
| Whether to support ODM or OEM: | Yes | |||||||||||
| Warranty period: | 2 years (Battery warranty 1 year) | |||||||||||
| Kind tips: This parameter is for reference only, our company reserves the right to change without prior notice | ||||||||||||
